Panimula ng Produkto

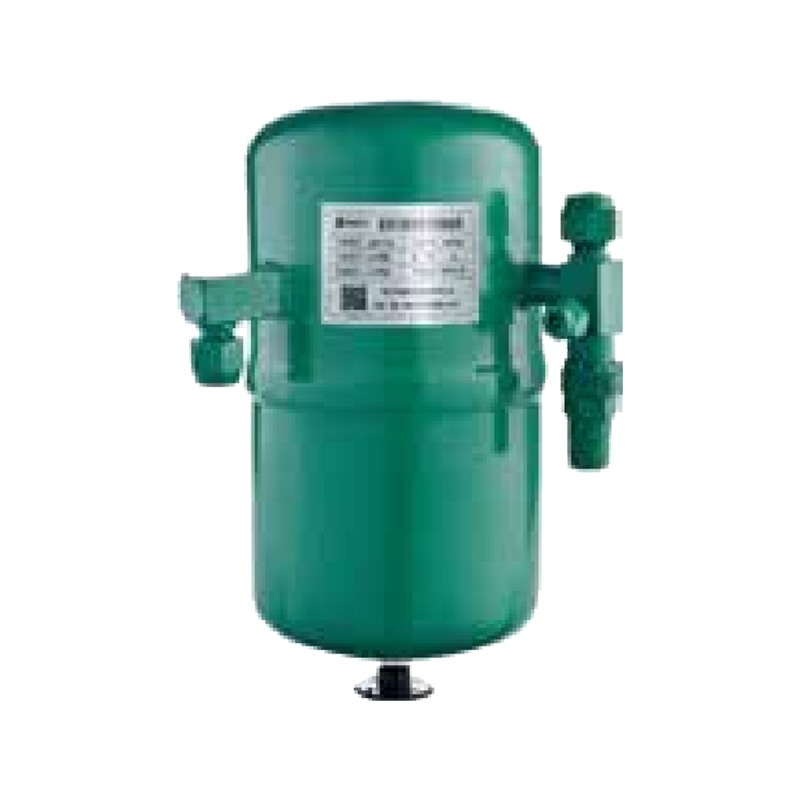

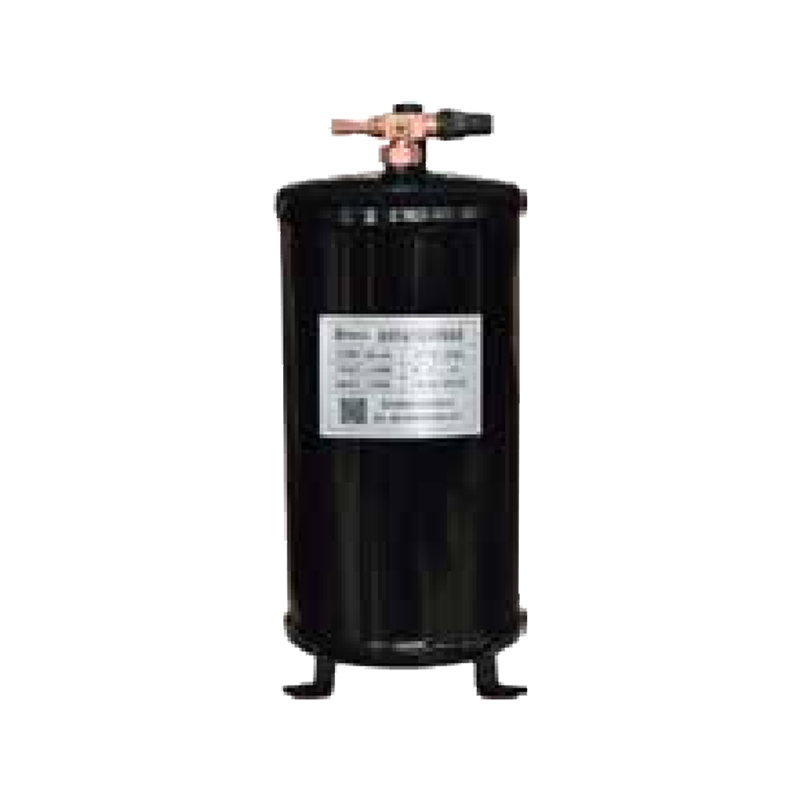

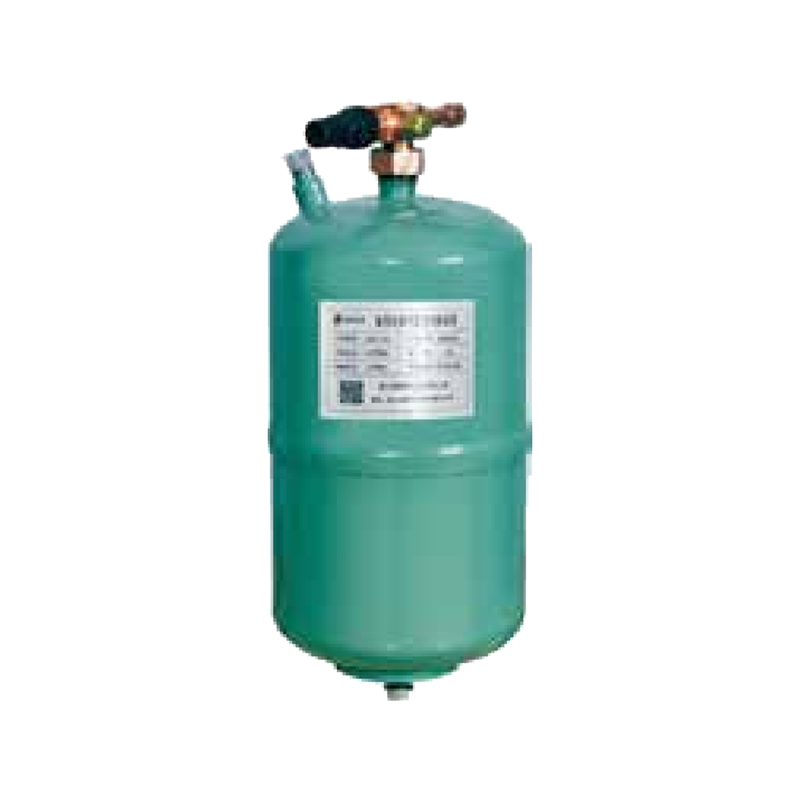

Vertical liquid receiver ang iyong pinakamahusay na pagpipilian ng mga bahagi ng pagpapalamig, nangangailangan ito ng verical installation, maximum working pressure ay 2.0MPa. Vertical liquid receiver ay may isang de-kalidad na rotary valve, upang ito ay makapag-install na may 36odegree rotating.

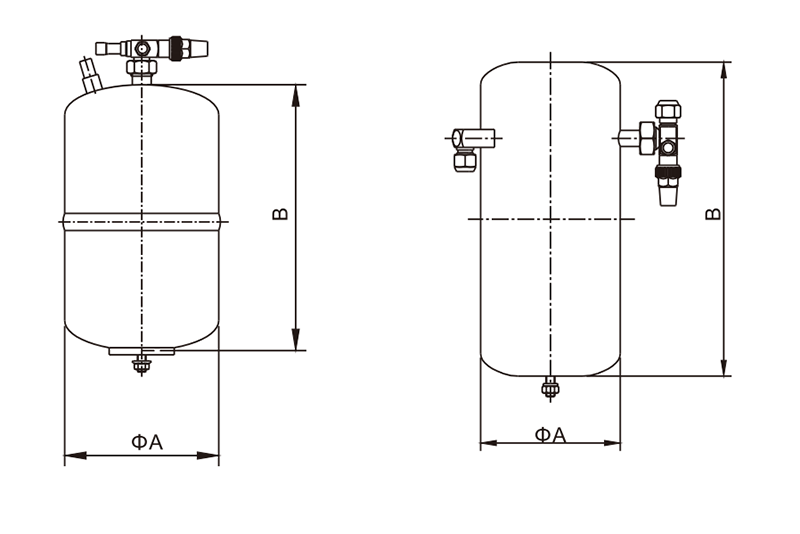

| Modelo | A(mm) | B(mm) | Laki ng koneksyon (pulgada) | Dami(L) | Pagpapanatili ng tornilyo |
| JHC-1/2HP | 98 | 179 | 3/8" | 1 | M10 |
| JHC-1HP | 120 | 215 | 3/8" | 2.2 | |
| JHC-2HP | 131 | 250 | 3/8" | 3 | |
| JHC-3HP | 147 | 265 | 1/2" | 4 | |
| JHC-5HP | 155 | 280 | 1/2" | 6 | |
| JHC-8HP | 180 | 310 | 1/2" | 8 | |
| JHC-10HP | 219 | 313 | 5/8" | 10 | M12 |
| JHC-12HP | 219 | 355 | 5/8" | 12 | |
| JHC-14HP | 219 | 390 | 5/8" | 14 | |
| JHC-16L | 219 | 450 | 7/8" | 16 | Tripod |
| JHC-18L | 219 | 530 | 7/8" | 18 | |
| JHC-20L | 219 | 600 | 7/8" | 20 | |
| JHC-25L | 219 | 750 | 7/8" | 25 |
